20mm Tuda Shockpad

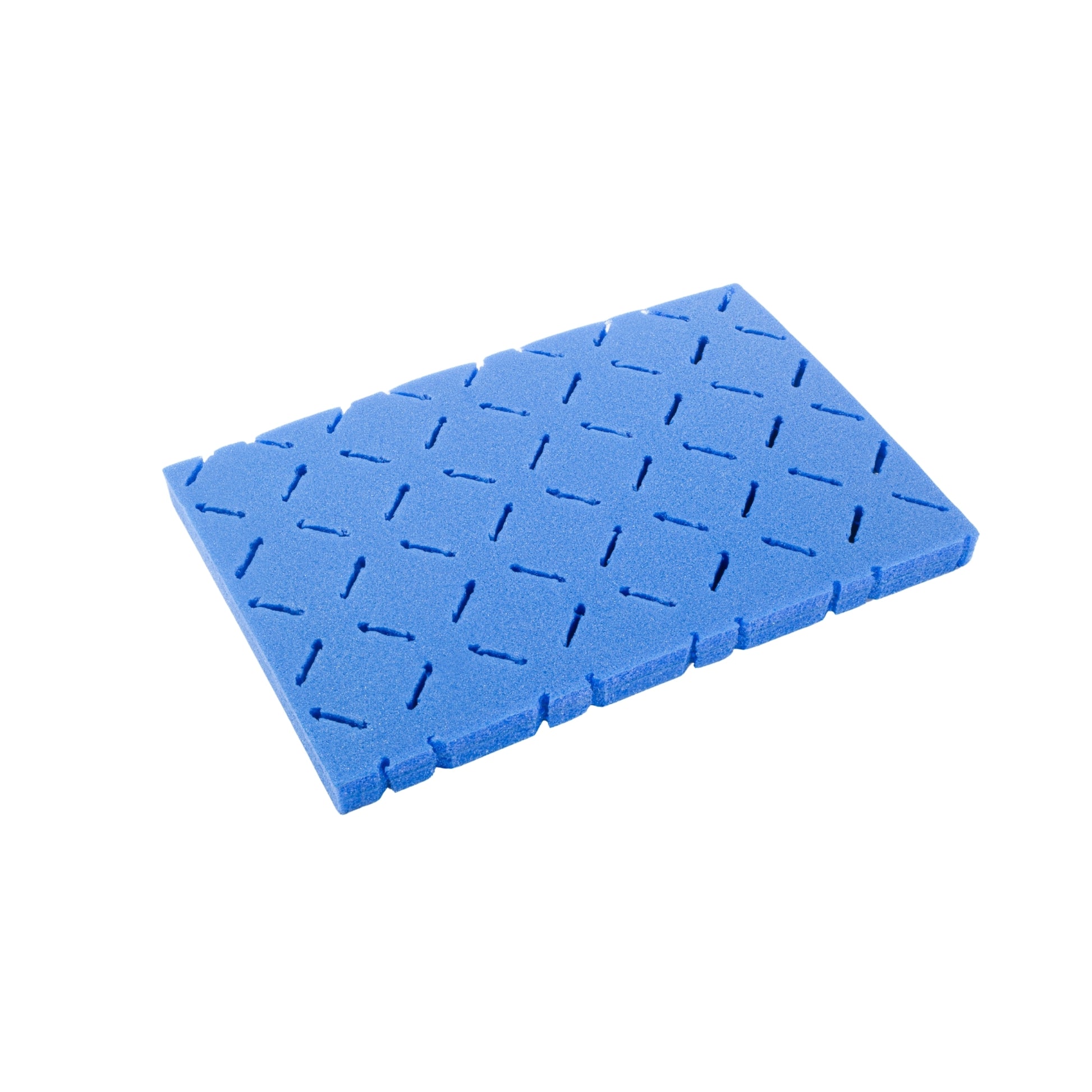

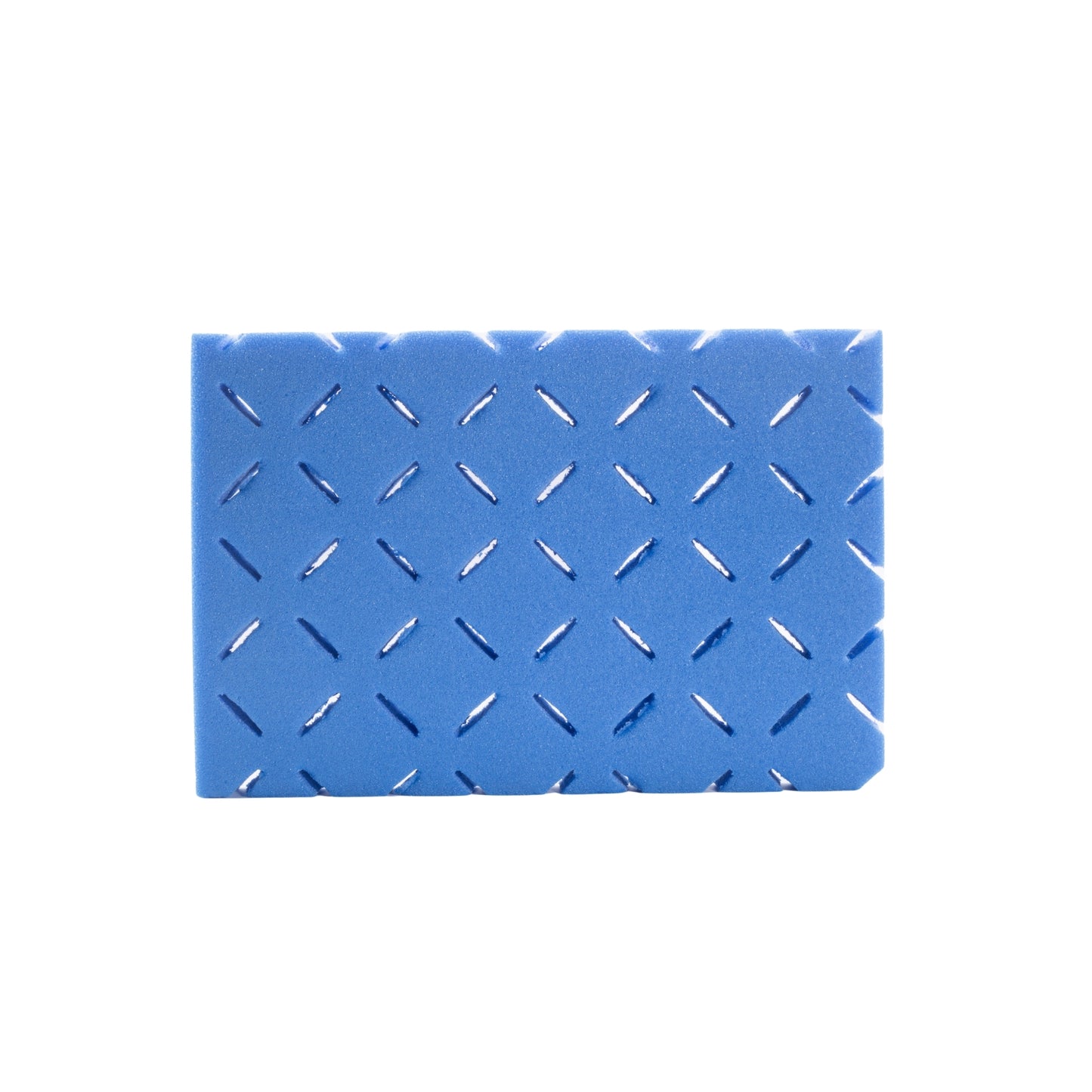

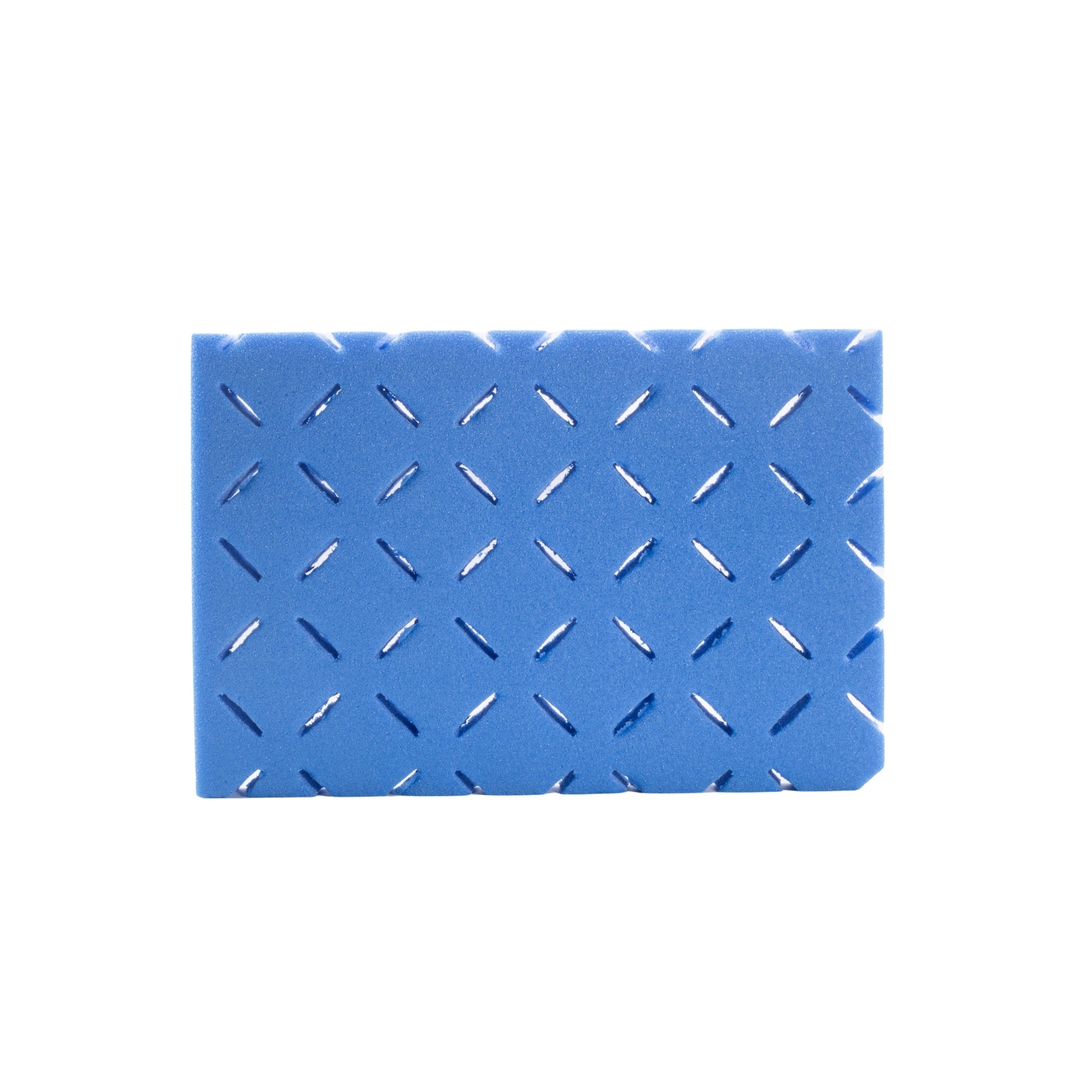

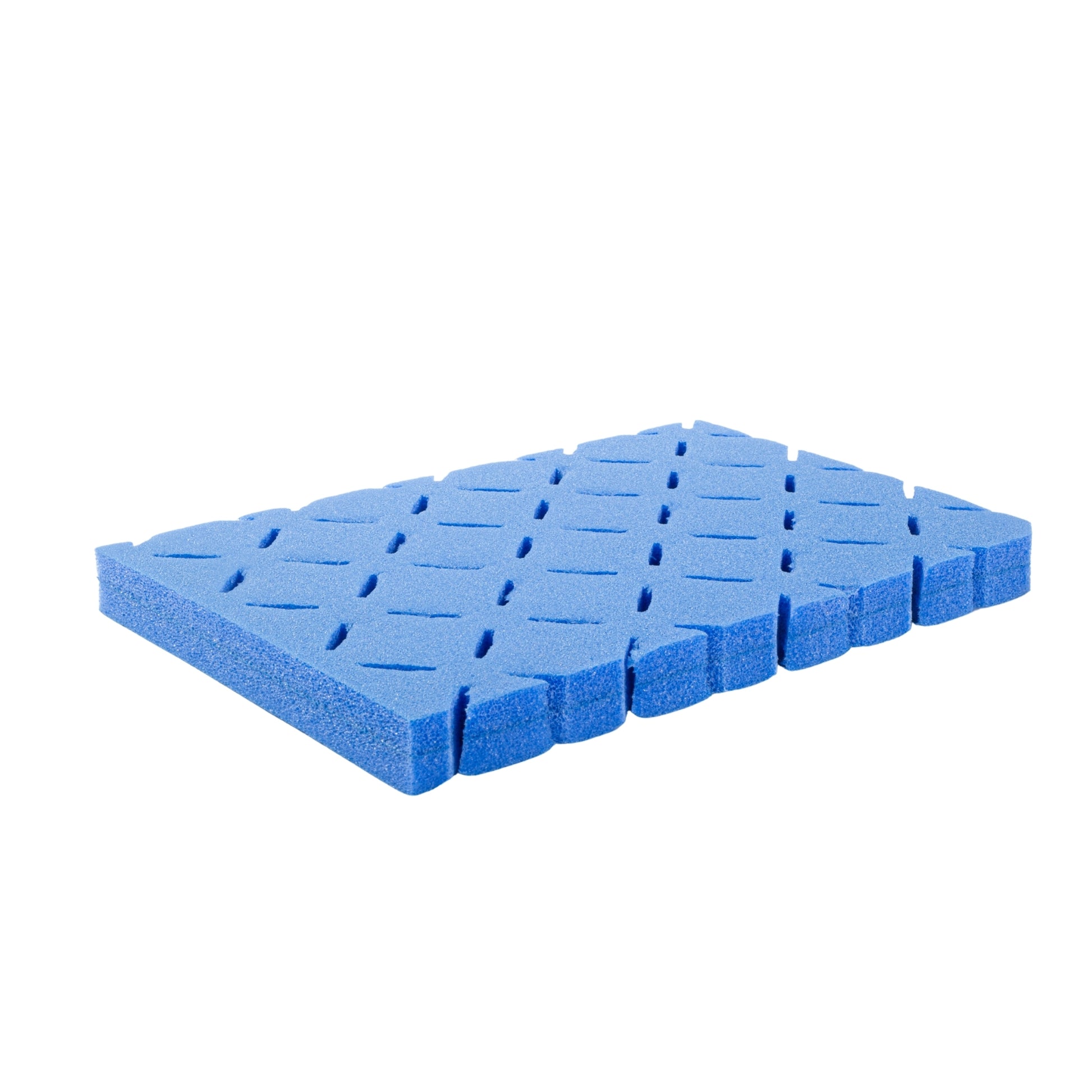

Tuda Shockpad (20mm)

The Tuda Shockpad (20mm) is a premium underlay solution that ensures maximum comfort, safety, and long-term performance in artificial turf systems. Constructed from closed-cell PE foam, this thicker variant is engineered to deliver enhanced shock absorption and deformation control, meeting the highest standards for professional sports surfaces.

Key Features & Benefits

Enhanced Comfort & Safety – High shock absorption (66.4%) and vertical deformation (13.5 mm) provide superior impact protection for athletes.

Weather & Wear Resistant – Maintains elasticity, resists bacteria, corrosion, and odours for consistent performance.

Unmatched Drainage – Rapid water infiltration (>24,000 mm/h) ensures optimal pitch usability in all weather conditions.

Sustainable Choice – Fully recyclable, eco-friendly, and designed with a patterned surface for improved permeability.

Installation Efficiency – Lightweight roll format (1.5m width, customizable length) reduces handling time and costs.

Technical Specifications

Material: Closed-cell PE foam

Density: 30 ±10% kg/m³ (ISO845)

Thickness: 20 mm

Mass per unit area: 635 g/m² (ISO8543:2020)

Shock Absorption: 66.4% (CEN/TS 16717:2015)

Vertical Deformation: 13.5 mm (CEN/TS 16717:2015)

Water Infiltration Rate: >24,000 mm/h (EN12616:2023)

Tensile Strength: 4.07 kN/m (EN12230:2023)

✔ FIFA Approved
✔ Tested by LABOSPORT ASIA for suitability in sports construction
